Commit45 //#JavaScript30 - Day 21 [Geolocation]

In this challenge we will use javascript to live update geolocation

Jun 13, 2023

I am learning with Skillcrush. Please check them out and consider signing up if you're looking to break into tech! Receive $250 off your course by using the link above. Use the coupon code: `TWIXMIXY`
NOTE: this discount is for Break Into Tech + Get Hired package exclusively. It's the same program I am participating in!

Today's challenge comes from JavaScript30.

🌈 Yesterday I took a break from doing a JS challenge (I still studied a bit and wrapped my first module in Advanced CSS) so that I could participate in my friends’ wedding! They are teammates of mine in Charlotte Roller Derby and one of them is my personal trainer. I felt honored to be a part of their day!

Now back to some heads down coding!

JavaScript30 - Day 21

For this challenge I needed to download Xcode. I had to clear up space on my computer to fit it. I am really beginning to feel like I need to a new device to go much further. This computer is feeling sluggish and I’m often running out of room.

I should probably just start deleting projects after I push them up to GitHub to clear up some space. Especially projects I’ll never touch again.

Xcode ended up taking over 4 hours to download and install. So hopefully I can get moving now!

OK. I’m still struggling… because now I need an iOS simulator. These are the times I wish I had someone on tap to help me through the process.

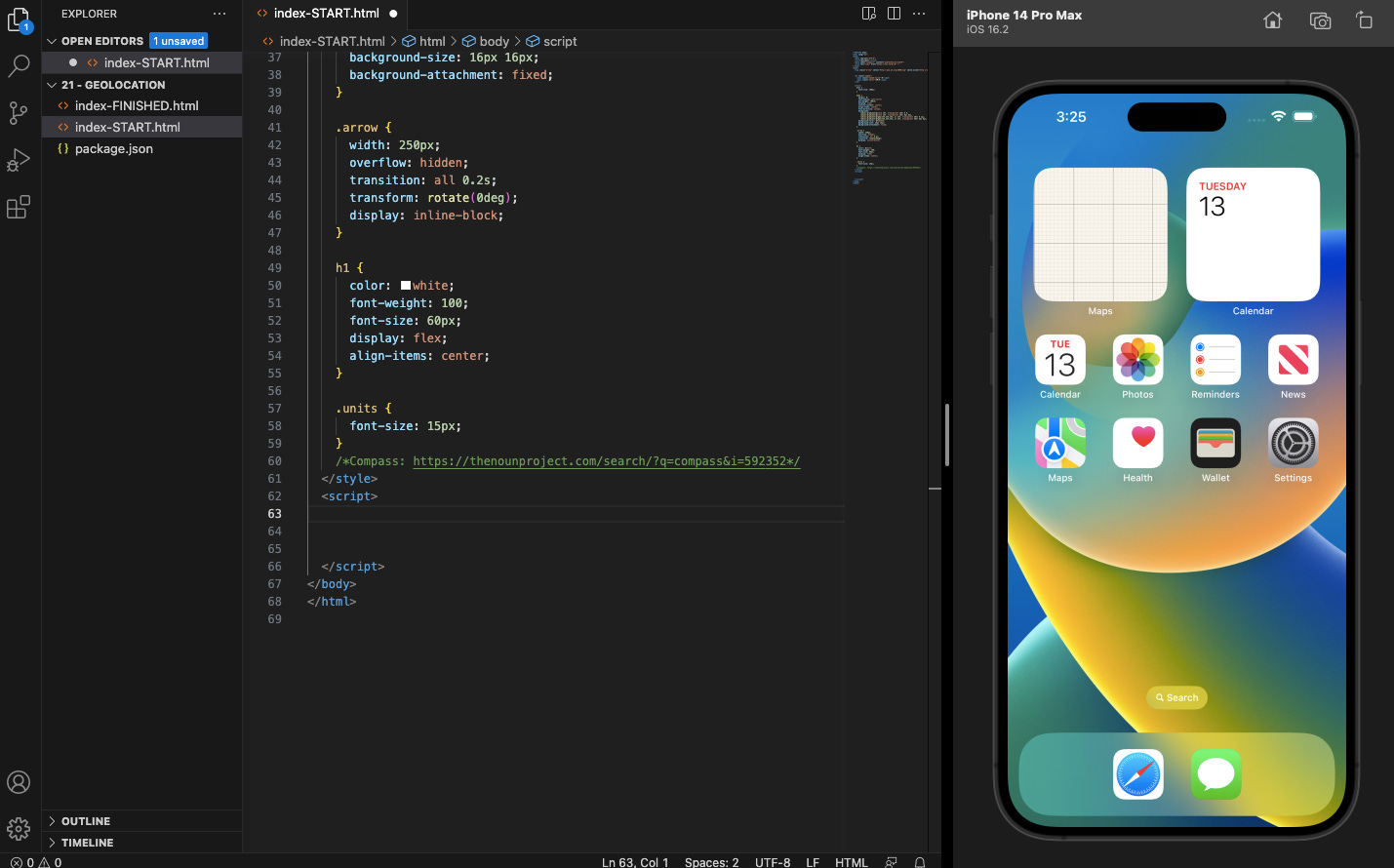

Figured it out. Open Xcode, click the menu, Open Developer Tools, then select Simulator. It’s booting up for me now…

Very cool!! It’s moments like this that I’m like… OK. I really am getting somewhere. I can do cool things and I really do know something.

We need to spin up a server for this project.

npm install

npm start

Now we have the IP address to open up our project on the simulator.

My computer is throwing an absolute fit over this. This is the first time I’ve ever heard the fan going off like this, but it’s working for now so I’d really like to try and complete this challenge!

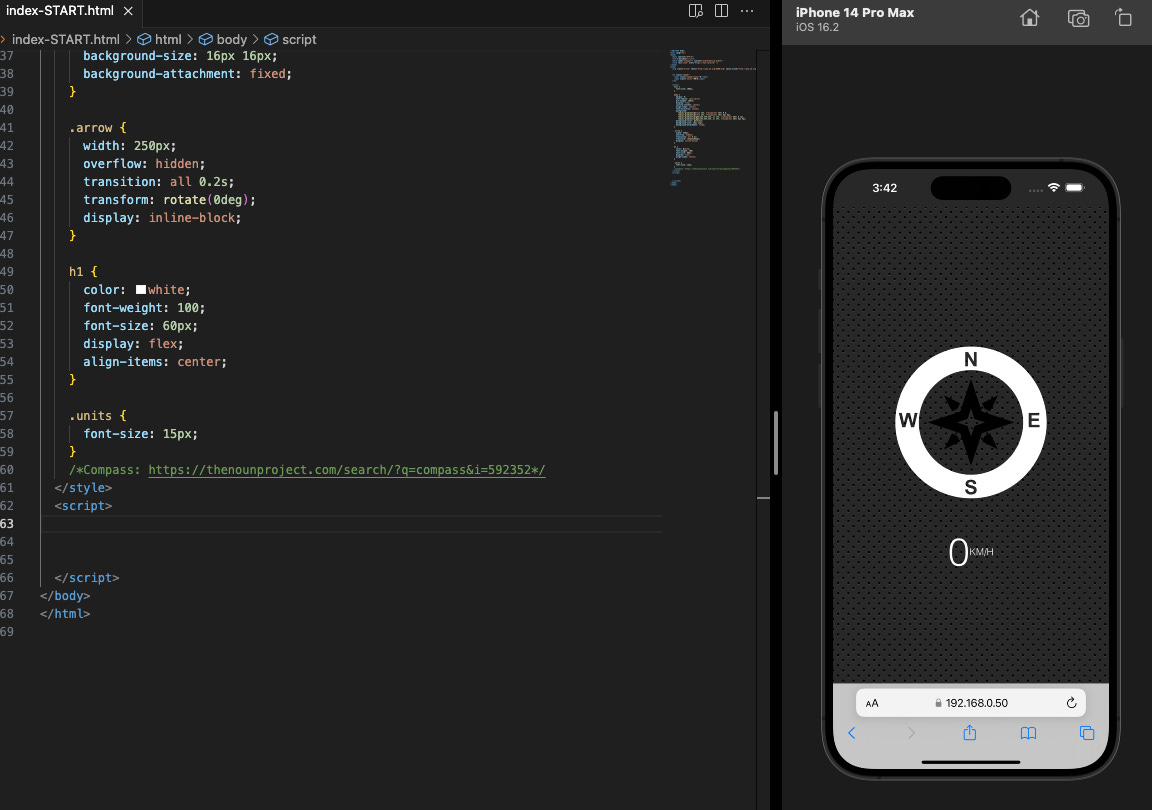

To begin we need to select the arrow and the km/h.

    const arrow = document.querySelector('.arrow');
    const speed = document.querySelector('.speed-value');

Next we need to listen for the users position.

    navigator.geolocation.watchPosition((data) => {
      console.log(data);
    });

We are asking it to watch our data’s location. navigator, geolocation, watchPosition are all innate properties in javascript.

It’s going to ask us to use our location.

Now we can see the GeolocationPosition in the console log.

My settings for the browser seem to be a person standing still. Hopefully on the app they can be perceived to be moving around thru the simulation.

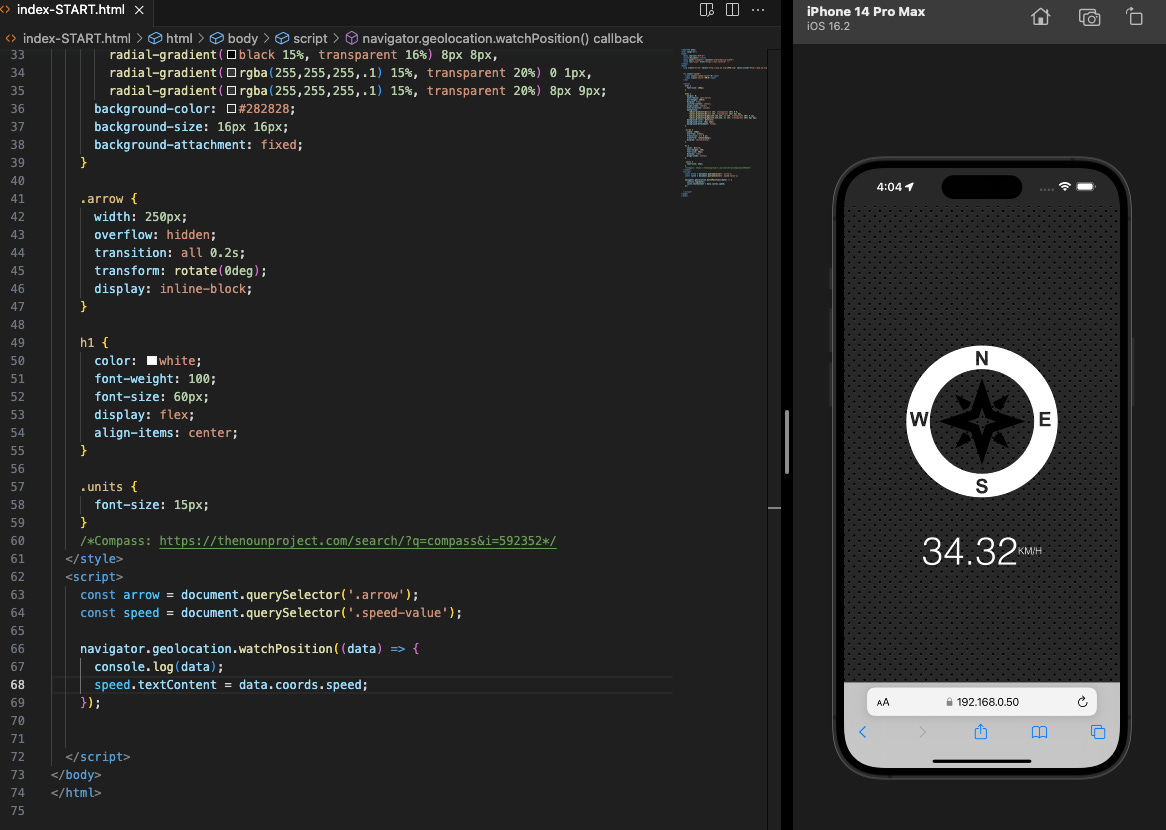

Time to add it to the UI.

    navigator.geolocation.watchPosition((data) => {
      console.log(data);
      speed.textContent = data.coords.speed;
    });

We took the speed data point from our console log and added it to our textContent.

Now to update the arrow!

arrow.style.transform = `rotate(20deg)`;

This will rotate the arrow by 20 degrees.

But we want it to update based off of the data. Not some hard coded degree.

${data.coords.heading}

This will be based off of how many degrees from north.

    navigator.geolocation.watchPosition((data) => {
      console.log(data);
      speed.textContent = data.coords.speed;
      arrow.style.transform = `rotate(${data.coords.heading}deg)`;
    });

And that’s really it! I’ll paste the entire code base for you here:

<!DOCTYPE html>
<html lang="en">
<head>
  <meta charset="UTF-8">
  <title>Document</title>
  <meta name="viewport" content="width=device-width">
  <link rel="icon" href="https://fav.farm/🔥" />
</head>
<body>
  <svg class="arrow" xmlns="http://www.w3.org/2000/svg" xmlns:xlink="http://www.w3.org/1999/xlink" version="1.1" x="0px" y="0px" viewBox="0 0 64 64" enable-background="new 0 0 64 64" xml:space="preserve"><g><path fill="#ffffff" d="M32,1.824C15.361,1.824,1.825,15.361,1.825,32c0,16.639,13.537,30.176,30.175,30.176   S62.175,48.639,62.175,32C62.175,15.361,48.639,1.824,32,1.824z M29.715,3.988h1.12l2.333,3.807V3.988h1.069v5.701h-1.155   l-2.298-3.718v3.718h-1.069V3.988z M9.323,33.917H8.102l-1.136-4.262l-1.132,4.262H4.587l-1.361-5.701h1.178l0.859,3.916   l1.042-3.916h1.369l0.999,3.982l0.875-3.982h1.159L9.323,33.917z M33.995,59.828c-0.181,0.285-0.438,0.497-0.77,0.636   c-0.332,0.139-0.745,0.208-1.241,0.208c-0.721,0-1.274-0.167-1.661-0.5c-0.386-0.333-0.617-0.819-0.692-1.456l1.12-0.109   c0.067,0.376,0.204,0.652,0.41,0.828c0.206,0.176,0.484,0.264,0.834,0.264c0.371,0,0.65-0.078,0.838-0.235   c0.188-0.157,0.282-0.34,0.282-0.55c0-0.135-0.04-0.25-0.119-0.344c-0.079-0.095-0.217-0.177-0.414-0.247   c-0.135-0.047-0.442-0.13-0.922-0.249c-0.617-0.153-1.05-0.341-1.299-0.564c-0.35-0.314-0.525-0.696-0.525-1.147   c0-0.29,0.082-0.562,0.247-0.815c0.165-0.253,0.402-0.445,0.712-0.577c0.31-0.132,0.684-0.198,1.122-0.198   c0.716,0,1.254,0.157,1.616,0.471c0.362,0.314,0.552,0.733,0.57,1.256l-1.151,0.051c-0.049-0.293-0.155-0.504-0.317-0.632   c-0.162-0.128-0.405-0.193-0.729-0.193c-0.334,0-0.596,0.069-0.786,0.206c-0.122,0.088-0.183,0.206-0.183,0.354   c0,0.135,0.057,0.25,0.171,0.346c0.145,0.122,0.498,0.249,1.058,0.381c0.56,0.132,0.974,0.269,1.243,0.41   c0.268,0.141,0.478,0.334,0.63,0.58c0.152,0.245,0.227,0.548,0.227,0.908C34.267,59.237,34.176,59.543,33.995,59.828z M32,52.795   c-11.466,0-20.795-9.329-20.795-20.795c0-11.466,9.329-20.795,20.795-20.795S52.795,20.534,52.795,32   C52.795,43.466,43.466,52.795,32,52.795z M55.014,33.917v-5.701h4.227v0.965h-3.076v1.264h2.862v0.96h-2.862v1.552h3.185v0.961   H55.014z"/><g><path fill="#000000" d="M48.904,31.863c-4.074-1.358-8.148-2.717-12.226-4.066c-0.265-0.087-0.399-0.223-0.486-0.486    c-1.349-4.077-2.708-8.151-4.066-12.226c-0.029-0.087-0.074-0.169-0.132-0.3c-0.054,0.152-0.09,0.245-0.122,0.34    c-1.352,4.053-2.707,8.104-4.048,12.161c-0.096,0.292-0.246,0.428-0.532,0.522c-4.056,1.342-8.108,2.696-12.16,4.049    c-0.097,0.032-0.189,0.074-0.344,0.137c0.172,0.06,0.267,0.093,0.362,0.125c4.074,1.358,8.148,2.717,12.224,4.072    c0.204,0.068,0.337,0.158,0.412,0.386c1.243,3.757,2.498,7.511,3.75,11.265c0.144,0.432,0.291,0.862,0.463,1.373    c0.068-0.185,0.108-0.285,0.142-0.386c1.349-4.042,2.701-8.083,4.04-12.128c0.094-0.284,0.231-0.438,0.523-0.534    c4.056-1.341,8.108-2.696,12.161-4.048c0.099-0.033,0.195-0.076,0.347-0.137C49.067,31.925,48.987,31.891,48.904,31.863z     M37.475,32.038c-1.316,0.439-2.631,0.879-3.947,1.314c-0.095,0.031-0.139,0.081-0.17,0.173c-0.434,1.313-0.873,2.625-1.311,3.937    c-0.012,0.033-0.024,0.066-0.046,0.126c-0.056-0.166-0.104-0.306-0.15-0.446c-0.407-1.219-0.814-2.437-1.218-3.657    c-0.025-0.074-0.068-0.104-0.134-0.125c-1.323-0.44-2.646-0.881-3.968-1.322c-0.031-0.01-0.062-0.022-0.118-0.041    c0.05-0.02,0.081-0.034,0.112-0.045c1.315-0.439,2.631-0.879,3.947-1.314c0.093-0.03,0.142-0.075,0.173-0.17    c0.435-1.316,0.875-2.632,1.314-3.947c0.01-0.031,0.022-0.062,0.039-0.11c0.019,0.042,0.033,0.069,0.043,0.097    c0.441,1.323,0.882,2.645,1.321,3.969c0.028,0.085,0.072,0.129,0.158,0.158c1.324,0.438,2.646,0.879,3.969,1.32    c0.027,0.009,0.053,0.02,0.1,0.038C37.538,32.013,37.507,32.027,37.475,32.038z"/><path fill="#000000" d="M24.436,27.633c-1.069-2.137-2.119-4.237-3.216-6.43c2.189,1.094,4.292,2.145,6.433,3.216    c-0.359,0.713-0.706,1.404-1.057,2.091c-0.023,0.045-0.078,0.082-0.127,0.106C25.807,26.949,25.143,27.28,24.436,27.633z"/><path fill="#000000" d="M39.573,27.632c-0.696-0.348-1.351-0.673-2.002-1.005c-0.076-0.038-0.155-0.104-0.193-0.177    c-0.338-0.661-0.666-1.326-1.019-2.033c2.121-1.061,4.228-2.115,6.43-3.217C41.69,23.399,40.635,25.509,39.573,27.632z"/><path fill="#000000" d="M24.436,36.339c0.712,0.357,1.394,0.698,2.074,1.043c0.046,0.024,0.088,0.073,0.113,0.121    c0.339,0.671,0.674,1.345,1.028,2.051c-2.126,1.063-4.232,2.117-6.43,3.216C22.317,40.577,23.37,38.472,24.436,36.339z"/><path fill="#000000" d="M36.358,39.555c0.354-0.707,0.688-1.38,1.028-2.05c0.028-0.056,0.084-0.111,0.14-0.139    c0.67-0.339,1.343-0.674,2.047-1.026c1.066,2.131,2.118,4.235,3.215,6.43C40.601,41.676,38.503,40.628,36.358,39.555z"/></g></g></svg>


  <h1 class="speed">
    <span class="speed-value">0</span>
    <span class="units">KM/H</span>
  </h1>

  <style>
    html {
      font-size: 100px;
    }

    body {
      margin: 0;
      font-family: sans-serif;
      min-height: 100vh;
      display: flex;
      justify-content: center;
      align-items: center;
      flex-direction: column;
      background:
        radial-gradient(black 15%, transparent 16%) 0 0,
        radial-gradient(black 15%, transparent 16%) 8px 8px,
        radial-gradient(rgba(255,255,255,.1) 15%, transparent 20%) 0 1px,
        radial-gradient(rgba(255,255,255,.1) 15%, transparent 20%) 8px 9px;
      background-color: #282828;
      background-size: 16px 16px;
      background-attachment: fixed;
    }

    .arrow {
      width: 250px;
      overflow: hidden;
      transition: all 0.2s;
      transform: rotate(0deg);
      display: inline-block;
    }

    h1 {
      color: white;
      font-weight: 100;
      font-size: 60px;
      display: flex;
      align-items: center;
    }

    .units {
      font-size: 15px;
    }
    /*Compass: https://thenounproject.com/search/?q=compass&i=592352*/
  </style>
  <script>
    const arrow = document.querySelector('.arrow');
    const speed = document.querySelector('.speed-value');

    navigator.geolocation.watchPosition((data) => {
      // console.log(data);
      speed.textContent = data.coords.speed;
      arrow.style.transform = `rotate(${data.coords.heading}deg)`;
    }, (err) => {
      console.err(err);
      alert('HEY! You need to allow location so this app works!');
    });


  </script>
</body>
</html>

Once we got up and running that challenge didn’t take too long, but the fact that I had never done anything with Xcode or iOS simulator made this really arduous!

See the project on GitHub

Thanks for joining me on today’s challenge. If you have any thoughts or feedback I’d love to hear from you. <3
